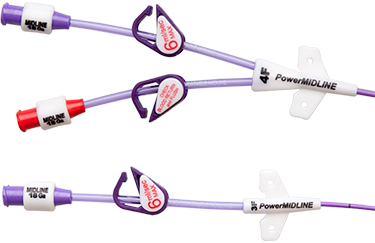

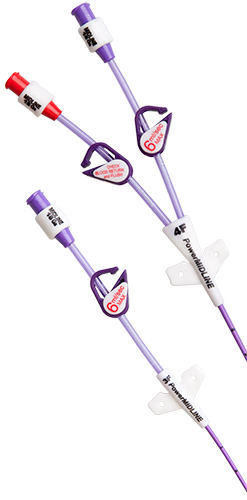

Provena™ Midline Catheter

Go Small. THINK BIG.

By combining advances in polyurethane material technology and manufacturing processes, BD offers a family of smaller-diameter* Modified Seldinger Technique (MST) midlines that maintain high performance for infusion therapy.

*Comparison in relation to Bard® PowerMidline Catheters

Features

It's time for a change!

Historically, the use of smaller-diameter midlines has meant reductions in flow rates and power-injection capabilities forcing clinicians to choose between a smaller catheter to vein ratio or infusion performance.

At BD, we believe that smaller-diameter* midlines can make a difference. Provena™ Midline Catheters occupy a smaller percentage of the vessel compared to Bard® PowerMidline Catheters of the same lumen configuration and yet maintain high performance for infusion therapy providing clinicians with a variety of options to meet their preferred catheter-to-vein ratio.


Smaller catheter*

  • Smaller-diameter MST midline that maintains high performance for infusion therapy
  • Created through a combination of engineering expertise and polyurethane material technology
  • Proprietary polyurethane material allows for thin catheter walls and large lumen sizes

Reverse taper

  • Provides kink resistance for multiple dressing orientation
  • Allows for gentle plugging of the insertion site

Power injectable
The catheter allows for injection of contrast media for CT scans at maximum flow rates:

  • 3 Fr single lumen: 6 mL/sec
  • 4 Fr dual lumen: 6 mL/sec

High-quality kit components
Available in Basic, Full and Max Barrier nursing configurations with MST components

Distally trimmable
A distally trimmable catheter allows for customization to each patient’s anatomy

Compatibility
Compatible with StatLock® Stabilization Devices

Clear identification
Unique hub design and catheter labeling further identify the catheter as a midline. This helps eliminate catheter confusion and promotes patient safety

Softening polyurethane
A polyurethane catheter that softens at body temperature

Kink resistance
The reverse taper is designed to gently plug the insertion site and provides kink resistance

No placement x-ray
No x-ray is required following the placement procedure

*Comparison in relation to BD PowerMidline Catheters


Let's make a quick comparison…

5 Fr Dual Lumen PowerMidline Catheter
vs
4 Fr Dual Lumen Provena™ Midline Catheter

BD Midline comparison graphic

Specifications

Nursing Trays

3 Fr Single Lumen

Packaging Quanity Product Code
Basic 5/case S4153118
Full 5/case S4153108
Full with GuardIVa® Dressing 5/case S4153108G
Max Barrier 3/case S4153108D
Max Barrier with GuardIVa® Dressing 3/case S4153108DG
Full with BioPatch Dressing 5/case S4153108B
Max Barrier with BioPatch Dressing 3/case S4153108BD
Full+ with BioPatch Dressing, Probe Cover and PinPoint GT Needle Guides 5/case S4153108BP
Max Barrier+ with BioPatch Dressing, Probe Cover and PinPoint GT Needle Guides 3/case S4153108BDP
Full+ with GuardIVa® Dressing, Probe Cover and PinPoint GT Needle Guides 5/case S4153108GP
Max Barrier+ with GuardIVa® Dressing, Probe Cover and PinPoint GT Needle Guides 3/case S4153108DGP
Max Barrier+ 3/case SP4153108D
Max Barrier+ with GuardIVa Dressing and Probe Cover 3/case SP4153108DG
Max Barrier+ with BioPatch Dressing and Probe Cover 3/case SP4153108DB

4 Fr Dual Lumen

Packaging Quanity Product Code
Basic 5/case S4254118
Full 5/case S4254108
Full with GuardIVa® Dressing 5/case S4254108G
Max Barrier 3/case S4254108D
Max Barrier with GuardIVa® Dressing 3/case S4254108DG
Full with BioPatch Dressing 5/case 4254108B
Max Barrier with BioPatch Dressing 3/case S4254108BD
Full+ with BioPatch Dressing, Probe Cover and PinPoint GT Needle Guides 5/case S4254108BP
Max Barrier+ with BioPatch Dressing, Probe Cover and PinPoint GT Needle Guides 3/case S4254108BDP
Full+ with GuardIVa® Dressing, Probe Cover and PinPoint GT Needle Guides 5/case S4254108GP
Max Barrier+ with GuardIVa® Dressing, Probe Cover and PinPoint GT Needle Guides 3/case S4254108DGP
Max Barrier+ 3/case SP4254108D
Max Barrier+ with GuardIVa® Dressing and Probe Cover 3/case SP4254108DG
Max Barrier+ with BioPatch Dressing and Probe Cover 3/case SP4254108DB

Catheter Performance

Catheter
Type
Catheter
Length (cm)
Average Priming
Volume (mL)
Max Achievable pump
Flow Rate1 (mL/hr)
Average Gravity
Flow Rate2
(mL/hr)
Lumen Size Power Injection
Flow Rate
(mL/sec)
3 Fr single lumen 20 0.34 Saline (1.0 cP): >999.99
TPN (2.0 cP): >999.99
Blood (3.5 cP): 868
1,454 18 6
4 Fr dual lumen 20 0.35 Saline (1.0 cP): >999.99
TPN (2.0 cP): >999.99
Blood (3.5 cP): 832
1,298 18/18 6

1 Estimates based on a pump alarm setting of 500 mmHg and a full length 20 cm catheter.
2 Testing performed using water.

Tray Components

The Provena™ Midline Catheter Max Barrier, Full, and Basic trays contain many of the same high-quality components as Bard® PowerMidline Catheter trays including Flexura® guidewires, MicroEZ® microintroducers, and StatLock® Stabilization Devices.

The Provena™ Midline Catheter is also compatible with Bard dressing change kits


Item Description Basic Full Full + Max Barrier Max Barrier +
Provena™ Midline
Introducer needle with PIV, 20 Ga.
MIcroEZ® Microintroducer
Flexura® guidewire
Safety Scalpel
Hypodermic needle, 25 Ga.
Filter straw
Tape strips
Transparent dressing
Fenestrated drape
Fenestrated drape, full body
Bouffant cap
Gown
Towel, absorbent
Drape, absorbent
Textured tourniquet
Face mask
Surgical tape
Measuring tape
End cap
Saline
Additional saline
Gloves
ChloraPrep™ Applicator, 3mL
Lidocaine
Syringe, 6mL
Alcohol wipes
Gauze pad, 4 in. x 4 in.
Gauze pad, 2 in. x 2 in.
StatLock® Stabilization Device
Catheter trimming device
Hand sanitizer
Probe cover w/ gel
Pinpoint™ Needle Guides in select kits

*Depending on the kit ordered, these components will differ.

Literature

Please refer below to the Instructions for Use (IFUs) for any indications, contraindications, hazards, warnings, and cautions.
